| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | R32-45mm |
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 20-30 |
| Product Name: | Thread Button Bit | Thread: | R32 |
|---|---|---|---|
| Diameter: | 45mm | Used: | Drifting And Tunneling, Or Dimensional Natural Stone Quarrying |
| Skirt Body: | Retrac, And Normal | Face: | Flat, Uniface |
| Carbide: | Dome, Ballistic | Color: | Black/Gold/Red/green Or Based On Customer Requirements |
| Material: | Tungsten Carbide |
The design of top hammer bits should consider the high strength and durability, while also requiring efficient cutting and long life. So button placement is an important part of designing and manufacturing bits, including location, number and shape of the button.

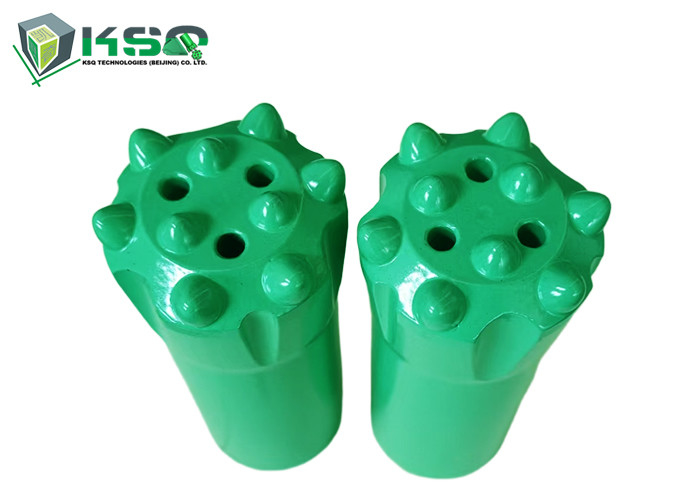

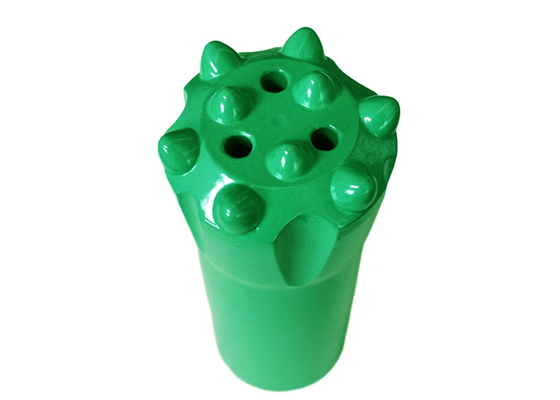

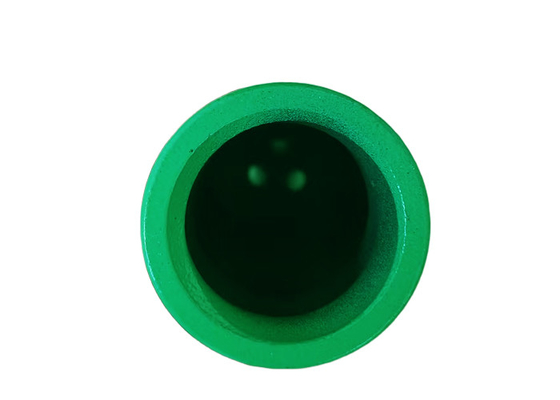

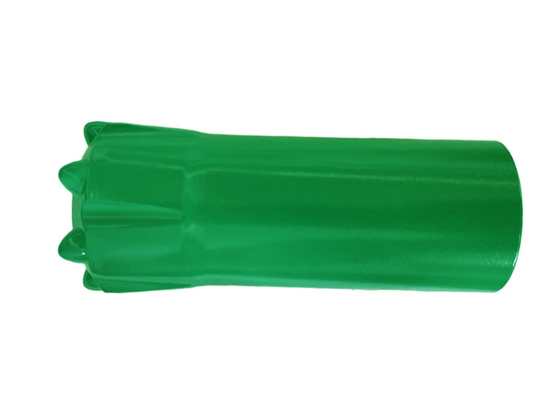

R32 thread button bits are a common tool in mining, construction or geological exploration. The choice of button arrangement directly affects the performance, efficiency and life of the button bit. You need to take the above factors into consideration when designing to meet the needs of a specific application. If you don’t have any idea,you can contact our professional sales team,we will recommend the most suitable one.
Specification of button bit:
| Thread | Diameter range | Skirt Design | Face Design | Button Design |
| R22 | 35 – 45mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R25 | 33 – 57mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R28 | 36 – 51mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R32 | 41 – 89mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R35 | 48 – 51mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R38 | 64 – 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
