| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T-WIZ60-102 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Features: | Long And Short Skirt | Material: | High Quality Alloy Steel |
|---|---|---|---|
| Diameter: | 60-102mm | Use: | Open Pit And Underground Mining |
| Skirt: | Normal Skirt/ Retract Sirt | Angle: | 35° |
| Buttons: | Customized(spherical;ballistic;conical) | Application: | Mining |
| Face Sharp: | Drop Center/Concave/Convex/Flat Face | Processing: | Casting / Forging |
| Processing Type: | Forging | Rock Class: | Soft, Medium And Hard |

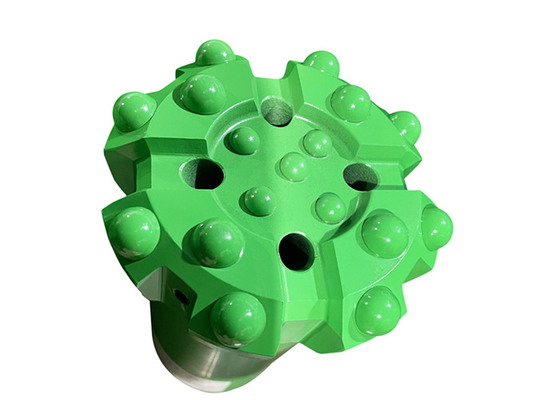

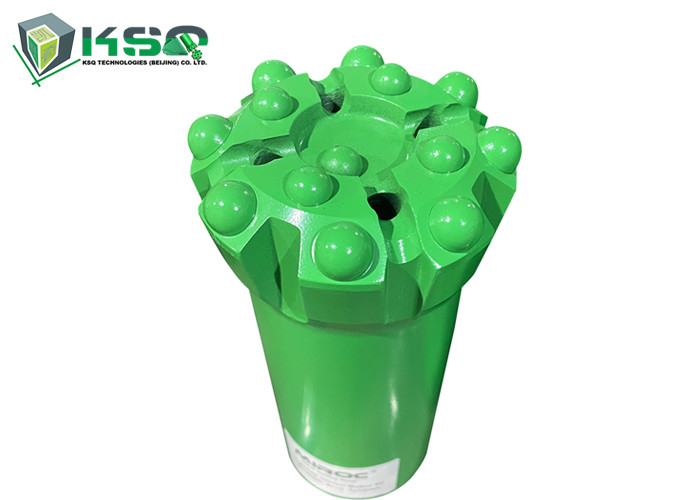

| Highlight: | Green Button Bit,Blue Button Bit,Hard Rock Mining Button Bit |
||
|
Tungsten Carbide: |
Ballistic, Spherical, or Conical |
|
Color: |
Green or Based on Customer requirements |
|
Material: |
Tungsten carbide and high strength alloy steel |
|
Processing: |
CNC milling and proprietary heat treatment process |
|
Rock Condition: |
Bit face design is ideal for medium-hard to hard abrasive rock |
|
Application: |
Widely used in bench and long hole drilling |
|
Diameter |
No.of |
Buttons x button diameter (mm) |
Gauge |
Flushing hole |
Weight |
|||
|
mm |
inch |
Gauge |
Centre |
Side |
Centre |
|||
|
BUTTON BITS-Spherical buttons |
||||||||
| 95 | 3 3/4 | 13 | 8x14.5 | 4x12,7 1x12.7 | 35° | - | 4 | 6,0 |
| 102 | 4 | 13 | 8x14.5 | 4x12.7, 1x12.7 | 35° | - | 4 | 6,6 |
| 102 | 4 | 13 | 8x14,5 | 4x12,7, 1x12.7 | 35° | - | 4 | 6,6 |
| 115 | 4 1/2 | 14 | 8x15,8 | 4x14,5, 2x14.5 | 35° | - | 4 | 8,9 |
| 115 | 4 1/2 | 14 | 8x15,8 | 4x14,5, 2x14,5 | 35° | - | 4 | 9,4 |
| 127 | 5 | 14 | 8x15.8 | 4x15,8, 2x14.5 | 35° | - | 4 | 11,3 |
| 127 | 5 | 14 | 8x15,8 | 4x15,8, 2x14.5 | 35° | - | 4 | 11,3 |
| 140 | 5 1/2 | 16 | 8x19.1 | 4x15,8, 4x15,8 | 35° | - | 4 | 15,0 |
| 140 | 5 1/2 | 16 | 8x19.1 | 4x15,8, 4x15,8 | 35° | - | 4 | 15,0 |
| 152 | 6 | 16 | 8x19,1 | 4x15,8, 4x15.8 | 35° | - | 4 | 13,1 |
| 152 | 6 | 16 | 8x19.1 | 4x15,8, 4x15,8 | 35° | - | 4 | 18,1 |
| BUTTON BITS - Ballistic buttons | ||||||||
| 92 | 3 5/8 | 13 | 8x14.5 | 4x12,7 1x12.7 | 35° | - | 4 | 4,7 |
| 92 | 3 5/8 | 13 | 8x14,5 | 4x12,7, 1x12.7 | 35° | - | 4 | 4,5 |
| 95 | 3 3/4 | 13 | 8x14.5 | 4x12,7, 1x12,7 | 35° | - | 4 | 5,9 |
| 102 | 4 | 13 | 8x14.5 | 4x12.7. 1x12,7 | 35° | - | 4 | 6,6 |
| 115 | 4 1/2 | 14 | 8x15.8 | 4x14,5,2x14.5 | 35° | - | 4 | 9,5 |
| 127 | 5 | 14 | 8x15.8 | 4x15,8.2x14.5 | 35° | - | 4 | 11,3 |
| 140 | 5 1/2 | 16 | 8x19.1 | 4x15,8,4x15.8 | 35° | - | 4 | 15,0 |
